ORVIBO Galaxy.

Recessed spotlights and downlights from 5 to 12 W with CRI above 95 and CCT colour change, from 2700 to 6000 K. Everything is controlled with ORVIBO: choose the mood you want from the panel, the app or your voice.

CRI > 95

Colours look as they are: product, wood, skin.

CCT colour change

From 2700 to 6000 K: from warm to cool white in every spotlight, without changing anything.

Anti-glare

UGR from below 10: you see the light, not the fitting.

ORVIBO

Zigbee, with MixPad, app and voice. Matter via MixPad: Apple Home, Google Home, Alexa and SmartThings.

The range, model by model.

42 references in white and black, from 24° to 50°. Open each model to see all its versions.

Recessed spotlight

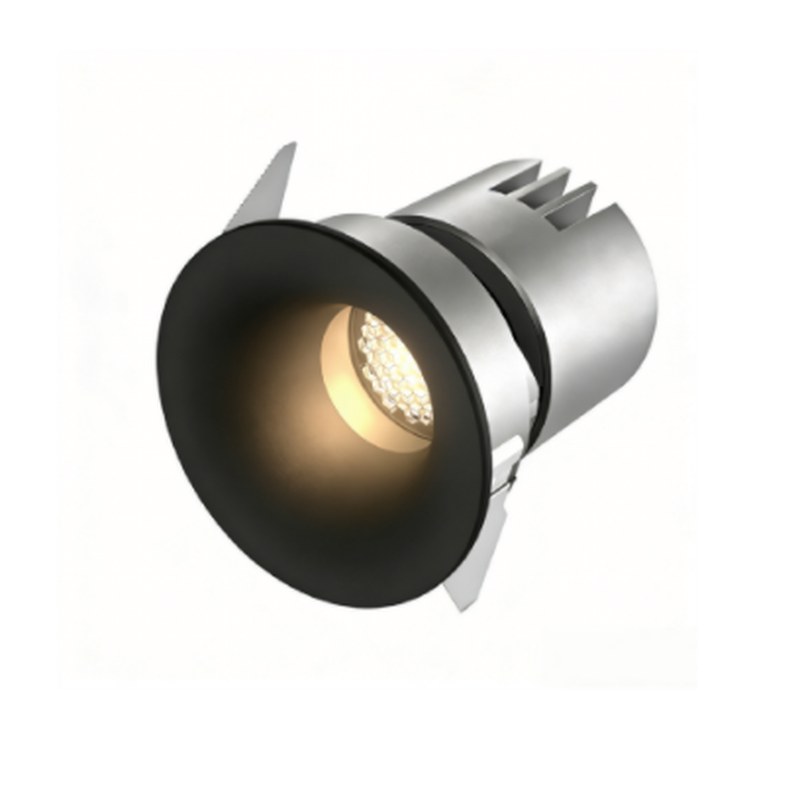

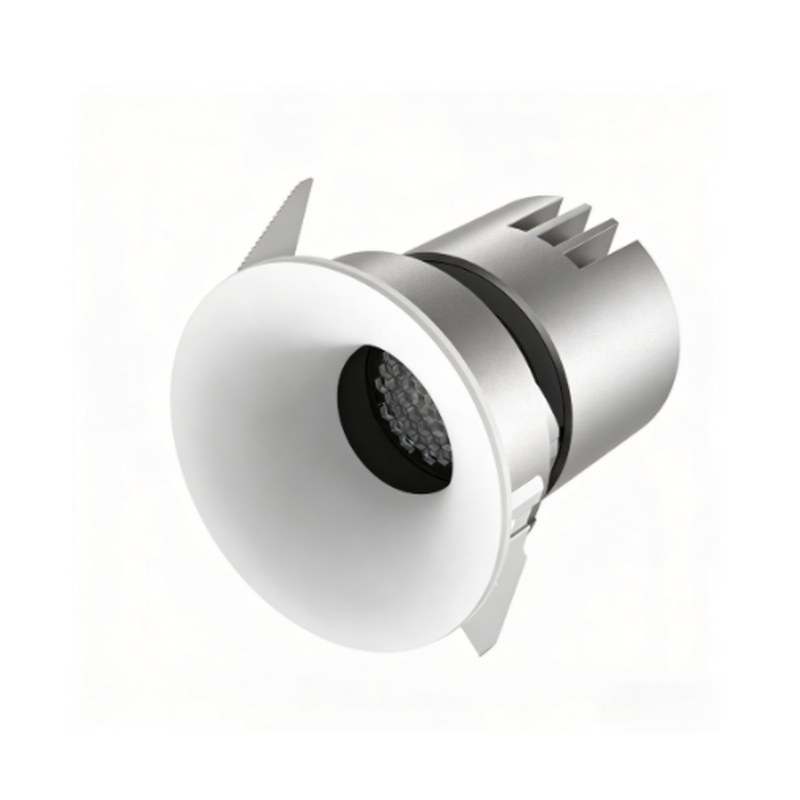

Galaxy Softlight

For stands: 12 W

Soft, anti-glare optics. The range’s reference spotlight.

12 / 8 WPower

up to 701 lmOutput

24° / 36°Beam

2700K–6000KCCT colour change

CRI > 95Colour

UGR < 10–14Glare

CCT colour change: from warm 2700 K to cool 6000 K white, in every spotlight and dimmable from 0 to 100%. Black and white finish. Zigbee control with ORVIBO. 110–220 V.

Compatible with

ZigbeeMatter, via MixPadApple HomeGoogle HomeAmazon AlexaSmartThingsApp ORVIBOVoice

The spotlights connect to the ORVIBO panel via Zigbee. With a MixPad from the AI & Matter range (4, 7, 10 or 12) acting as a Matter bridge, they also work with Apple Home, Google Home, Amazon Alexa and SmartThings.

8 items

Model	Code	Power	Beam	Finish	Output	UGR	Cut-out	Size
DSZ12228	9.17.01000507	12 W	24°	White	≥701 lm	< 14	Ø 75 mm	Ø 83 mm × H91 mm
DSZ12229	9.17.01000508	12 W	36°	White	≥701 lm	< 14	Ø 75 mm	Ø 83 mm × H91 mm
DSZ08252	9.17.01000511	8 W	24°	White	≥567 lm	< 10	Ø 55 mm	Ø 61 × H71 mm
DSZ08253	9.17.01000512	8 W	36°	White	≥567 lm	< 10	Ø 55 mm	Ø 61 × H71 mm
DSZ12230	9.17.01000509	12 W	24°	Black	≥701 lm	< 14	Ø 75 mm	Ø 83 mm × H91 mm
DSZ12231	9.17.01000510	12 W	36°	Black	≥701 lm	< 14	Ø 75 mm	Ø 83 mm × H91 mm
DSZ08254	9.17.01000513	8 W	24°	Black	≥567 lm	< 10	Ø 55 mm	Ø 61 × H71 mm
DSZ08255	9.17.01000514	8 W	36°	Black	≥567 lm	< 10	Ø 55 mm	Ø 61 × H71 mm

Recessed downlight

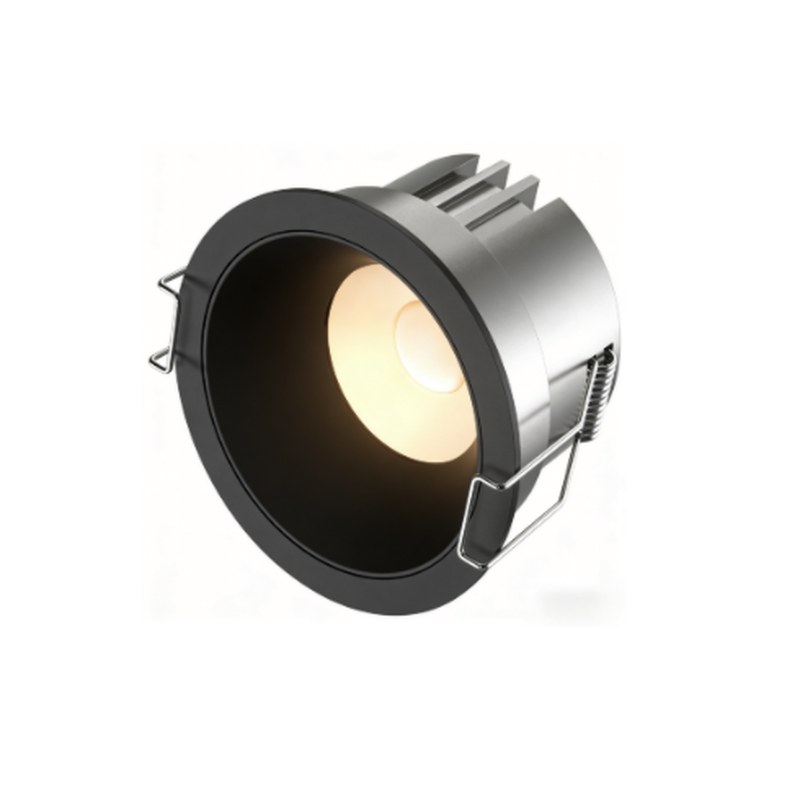

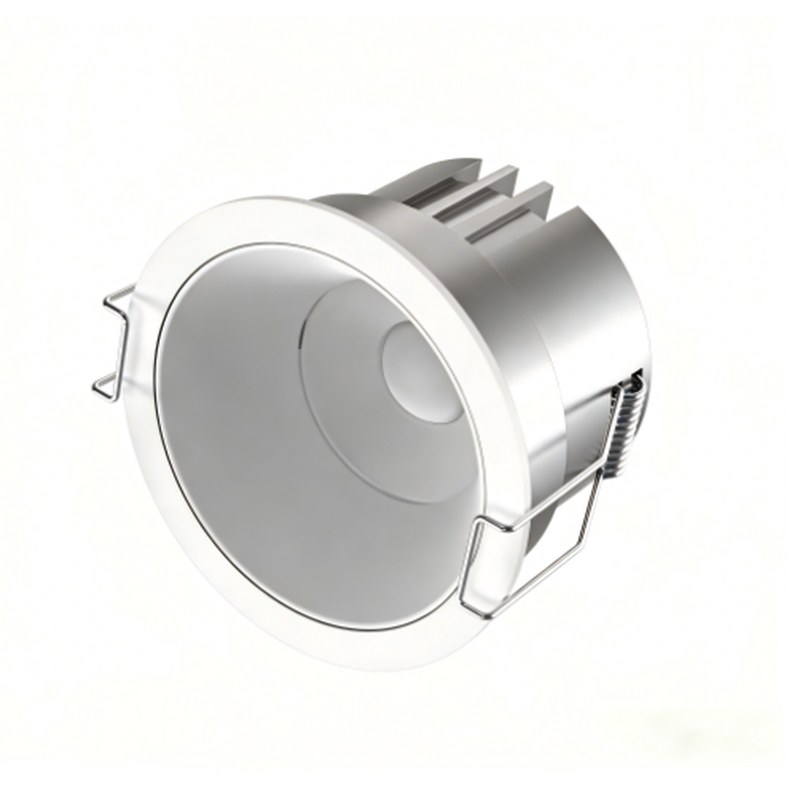

Galaxy Softlight Downlight

Wider beam (36° or 50°) and more output: general lighting for ceilings.

10 / 8 WPower

up to 910 lmOutput

36° / 50°Beam

2700K–6000KCCT colour change

CRI > 95Colour

UGR < 16–20Glare

CCT colour change: from warm 2700 K to cool 6000 K white, in every spotlight and dimmable from 0 to 100%. Black and white finish. Zigbee control with ORVIBO. 110–220 V.

Compatible with

ZigbeeMatter, via MixPadApple HomeGoogle HomeAmazon AlexaSmartThingsApp ORVIBOVoice

8 items

Model	Code	Power	Beam	Finish	Output	UGR	Cut-out	Size
DTZ10102	9.17.01000515	10 W	36°	White	≥887 lm	< 20	Ø 75 mm	Ø 82 × H54 mm
DTZ10103	9.17.01000516	10 W	50°	White	≥910 lm	< 20	Ø 75 mm	Ø 82 × H54 mm
DTZ08001	9.17.01000519	8 W	36°	White	≥500 lm	< 16	Ø 55 mm	Ø 62 × H47 mm
DTZ08002	9.17.01000520	8 W	50°	White	≥560 lm	< 18	Ø 55 mm	Ø 62 × H47 mm
DTZ10104	9.17.01000517	10 W	36°	Black	≥887 lm	< 20	Ø 75 mm	Ø 82 × H54 mm
DTZ10105	9.17.01000518	10 W	50°	Black	≥910 lm	< 20	Ø 75 mm	Ø 82 × H54 mm
DTZ08003	9.17.01000521	8 W	36°	Black	≥500 lm	< 16	Ø 55 mm	Ø 62 × H47 mm
DTZ08004	9.17.01000522	8 W	50°	Black	≥560 lm	< 18	Ø 55 mm	Ø 62 × H47 mm

Frameless recessed spotlight

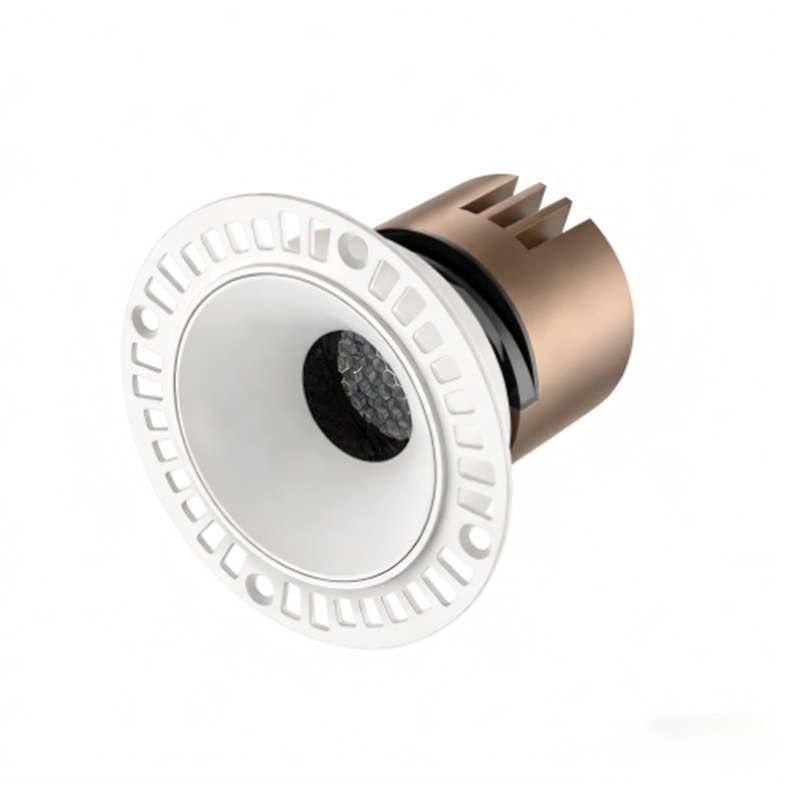

Galaxy frameless

For stands: 12 W

Sits flush with the ceiling: only the light shows.

12 WPower

up to 800 lmOutput

24° / 36°Beam

2700K–6000KCCT colour change

CRI > 95Colour

UGR < 15Glare

CCT colour change: from warm 2700 K to cool 6000 K white, in every spotlight and dimmable from 0 to 100%. White finish. Zigbee control with ORVIBO. 110–220 V.

Compatible with

ZigbeeMatter, via MixPadApple HomeGoogle HomeAmazon AlexaSmartThingsApp ORVIBOVoice

2 items

Model	Code	Power	Beam	Finish	Output	UGR	Cut-out	Size
DSZ12232	9.17.01000523	12 W	24°	White	≥800 lm	< 15	Ø 75 mm	—
DSZ12233	9.17.01000524	12 W	36°	White	≥800 lm	< 15	Ø 75 mm	—

Low-profile recessed spotlight

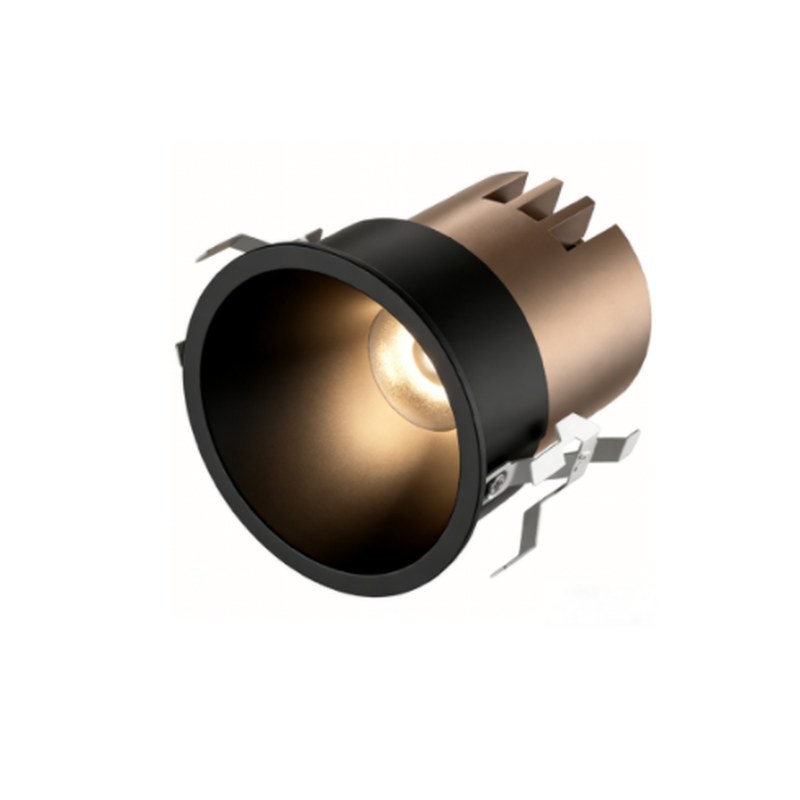

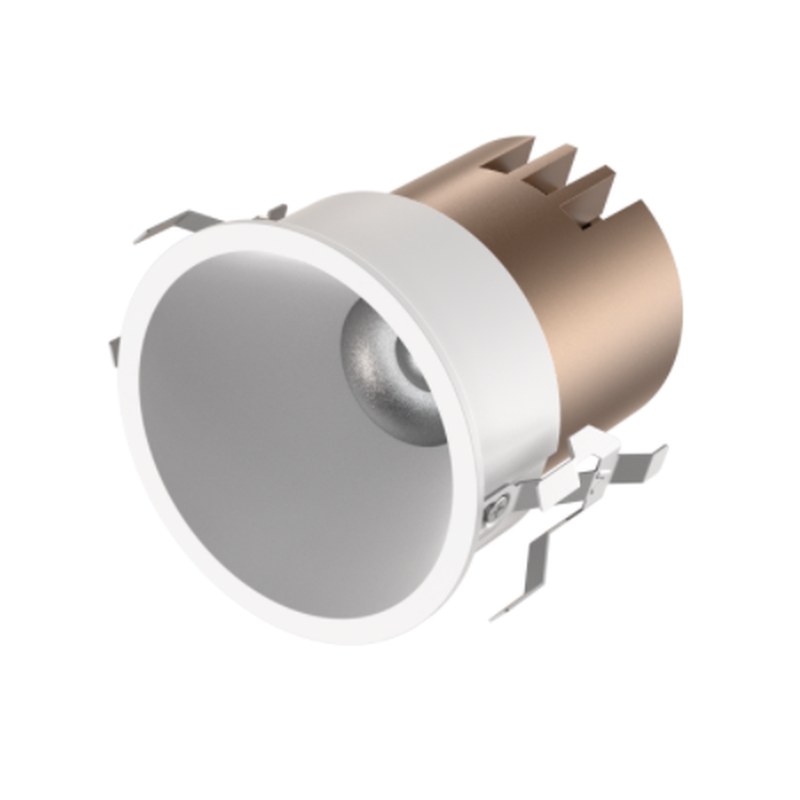

Galaxy ultra-thin

For stands: 12 W

A body just 59 mm deep for shallow ceilings. The 12 W has the highest output in the range.

12 / 8 WPower

up to 962 lmOutput

24° / 36°Beam

2700K–6000KCCT colour change

CRI > 95Colour

UGR < 15Glare

CCT colour change: from warm 2700 K to cool 6000 K white, in every spotlight and dimmable from 0 to 100%. Black and white finish. Zigbee control with ORVIBO. 110–220 V.

Compatible with

ZigbeeMatter, via MixPadApple HomeGoogle HomeAmazon AlexaSmartThingsApp ORVIBOVoice

8 items

Model	Code	Power	Beam	Finish	Output	UGR	Cut-out	Size
DSZ12234	9.17.01000529	12 W	24°	White	≥962 lm	< 15	Ø 75 mm	Ø 80 × H59 mm
DSZ12235	9.17.01000530	12 W	36°	White	≥962 lm	< 15	Ø 75 mm	Ø 80 × H59 mm
DSZ08252	9.17.01000531	8 W	24°	White	≥500 lm	< 15	Ø 55 mm	Ø 60 × H59 mm
DSZ08253	9.17.01000532	8 W	36°	White	≥500 lm	< 15	Ø 55 mm	Ø 60 × H59 mm
DSZ12236	9.17.01000533	12 W	24°	Black	≥962 lm	< 15	Ø 75 mm	Ø 80 × H59 mm
DSZ12237	9.17.01000534	12 W	36°	Black	≥962 lm	< 15	Ø 75 mm	Ø 80 × H59 mm
DSZ08254	9.17.01000535	8 W	24°	Black	≥500 lm	< 15	Ø 55 mm	Ø 60 × H59 mm
DSZ08255	9.17.01000536	8 W	36°	Black	≥500 lm	< 15	Ø 55 mm	Ø 60 × H59 mm

Small cut-out spotlight

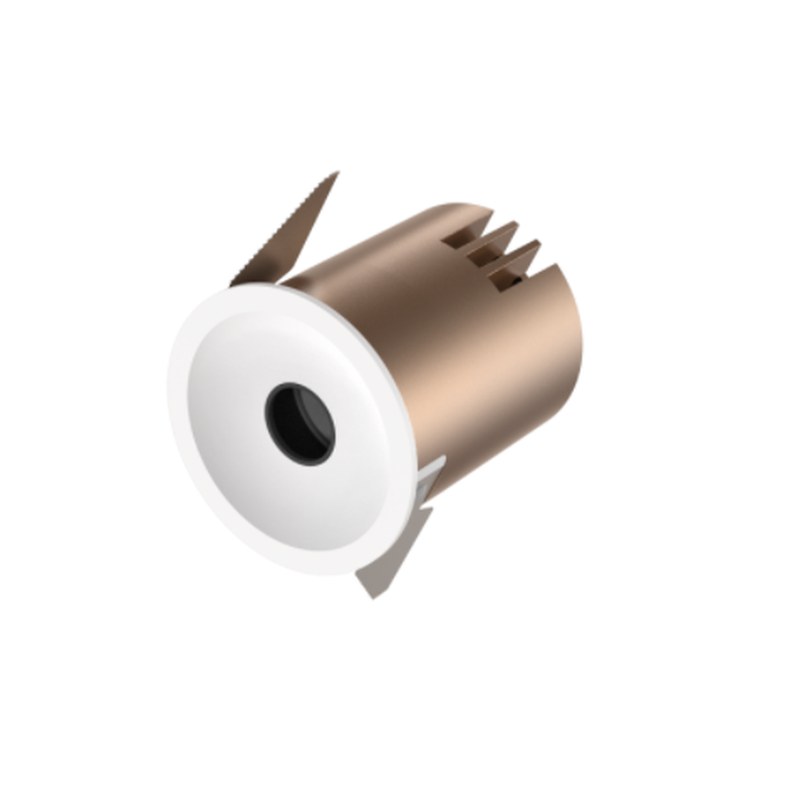

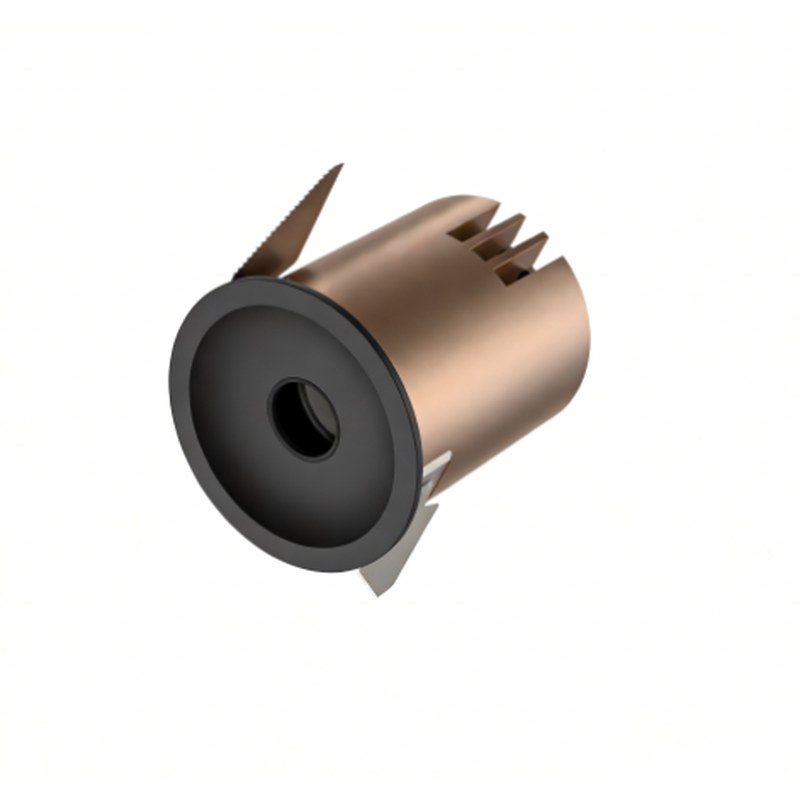

Galaxy small hole

For stands: 12 W

65 or 55 mm cut-out and a deeply recessed light source: very discreet.

12 / 8 WPower

up to 621 lmOutput

24° / 36°Beam

2700K–6000KCCT colour change

CRI > 95Colour

UGR < 12–14Glare

CCT colour change: from warm 2700 K to cool 6000 K white, in every spotlight and dimmable from 0 to 100%. Black and white finish. Zigbee control with ORVIBO. 110–220 V.

Compatible with

ZigbeeMatter, via MixPadApple HomeGoogle HomeAmazon AlexaSmartThingsApp ORVIBOVoice

8 items

Model	Code	Power	Beam	Finish	Output	UGR	Cut-out	Size
DSZ12238	9.17.01000537	12 W	24°	White	≥621 lm	< 14	Ø 65 mm	Ø 70 × H77 mm
DSZ12239	9.17.01000538	12 W	36°	White	≥621 lm	< 14	Ø 65 mm	Ø 70 × H77 mm
DSZ08256	9.17.01000539	8 W	24°	White	≥267 lm	< 12	Ø 55 mm	Ø 60 × H67 mm
DSZ08257	9.17.01000540	8 W	36°	White	≥267 lm	< 12	Ø 55 mm	Ø 60 × H67 mm
DSZ12240	9.17.01000541	12 W	24°	Black	≥621 lm	< 14	Ø 65 mm	Ø 70 × H77 mm
DSZ12241	9.17.01000542	12 W	36°	Black	≥621 lm	< 14	Ø 65 mm	Ø 70 × H77 mm
DSZ08258	9.17.01000543	8 W	24°	Black	≥267 lm	< 12	Ø 55 mm	Ø 60 × H67 mm
DSZ08259	9.17.01000544	8 W	36°	Black	≥267 lm	< 12	Ø 55 mm	Ø 60 × H67 mm

Adjustable recessed spotlight

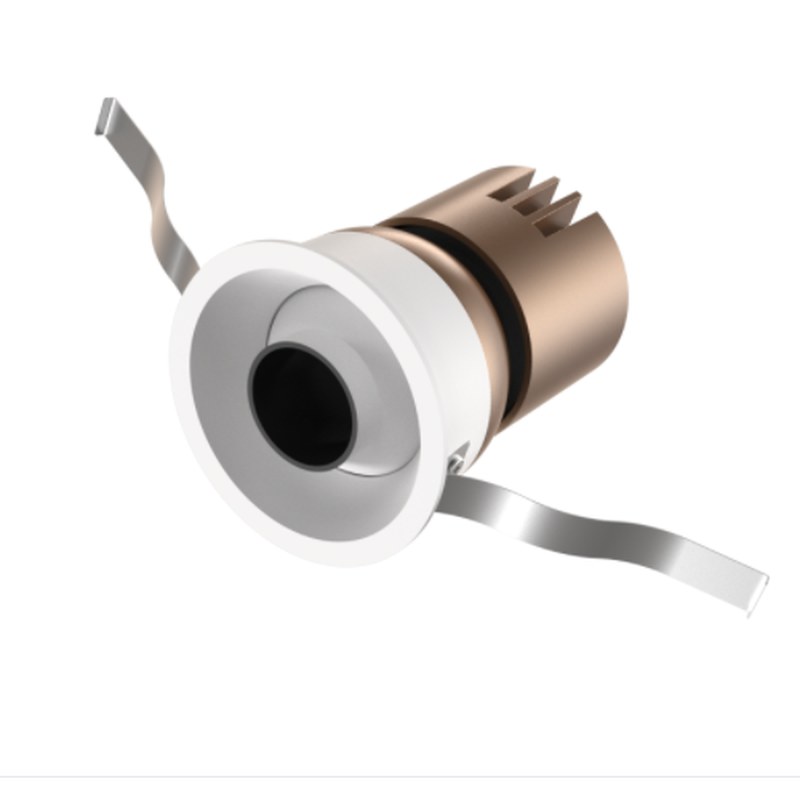

Galaxy adjustable

It swivels and tilts to aim at the product.

10 / 8 WPower

up to 634 lmOutput

24° / 36°Beam

2700K–6000KCCT colour change

CRI > 95Colour

UGR < 12–16Glare

CCT colour change: from warm 2700 K to cool 6000 K white, in every spotlight and dimmable from 0 to 100%. White finish. Zigbee control with ORVIBO. 110–220 V.

Compatible with

ZigbeeMatter, via MixPadApple HomeGoogle HomeAmazon AlexaSmartThingsApp ORVIBOVoice

4 items

Model	Code	Power	Beam	Finish	Output	UGR	Cut-out	Size
DSZ10104	9.17.01000545	10 W	24°	White	≥634 lm	< 16	Ø 75 mm	Ø 82 × H97 mm
DSZ10105	9.17.01000546	10 W	36°	White	≥634 lm	< 16	Ø 75 mm	Ø 82 × H97 mm
DSZ08260	9.17.01000547	8 W	24°	White	≥439 lm	< 12	Ø 55 mm	Ø 62 × H79 mm
DSZ08261	9.17.01000548	8 W	36°	White	≥439 lm	< 12	Ø 55 mm	Ø 62 × H79 mm

5 W miniature spotlight

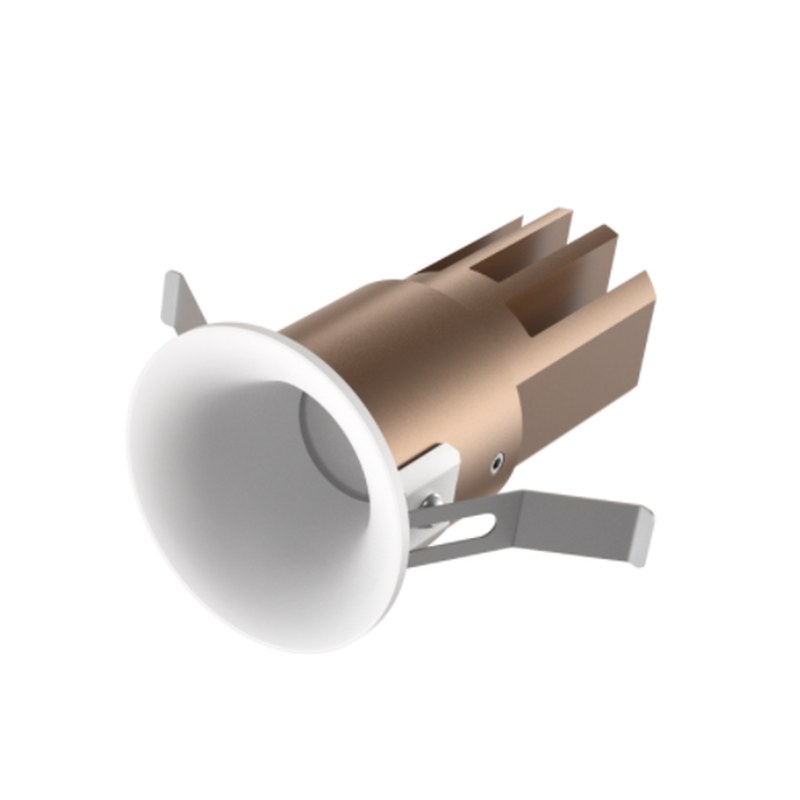

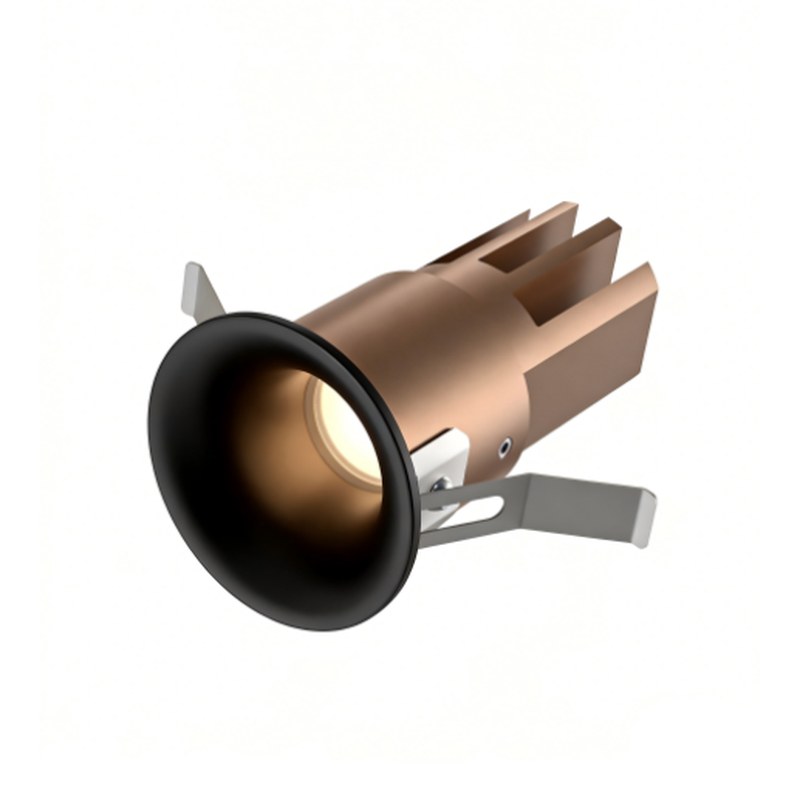

Galaxy mini

35 mm cut-out. For showcases, shelves and small details.

5 WPower

up to 329 lmOutput

24° / 36°Beam

2700K–6000KCCT colour change

CRI > 95Colour

UGR < 14–18Glare

CCT colour change: from warm 2700 K to cool 6000 K white, in every spotlight and dimmable from 0 to 100%. Black and white finish. Zigbee control with ORVIBO. 110–220 V.

Compatible with

ZigbeeMatter, via MixPadApple HomeGoogle HomeAmazon AlexaSmartThingsApp ORVIBOVoice

4 items

Model	Code	Power	Beam	Finish	Output	UGR	Cut-out	Size
DSZ05001	9.17.01000525	5 W	24°	White	≥261 lm	< 14	Ø 35 mm	—
DSZ05002	9.17.01000526	5 W	36°	White	≥329 lm	< 18	Ø 35 mm	—
DSZ05003	9.17.01000527	5 W	24°	Black	≥261 lm	< 14	Ø 35 mm	—
DSZ05004	9.17.01000528	5 W	36°	Black	≥329 lm	< 18	Ø 35 mm	—

Every place, its power.

A stand has height and a lot of light around it: we always choose the power that will be noticed.

Showcases and detailsThe small 5 W spotlight, inside the showcase or on the shelves.Galaxy mini 5 W

Bars and counters7 W spotlights over the bar, at low height.S3 spotlights

Small stand12 W spotlights for general and product lighting.Galaxy 12 W Track spotlights

Medium and large stands40–58 W ceiling lights: with the height of a stand, anything less goes unnoticed.ORVIBO ceiling lights
