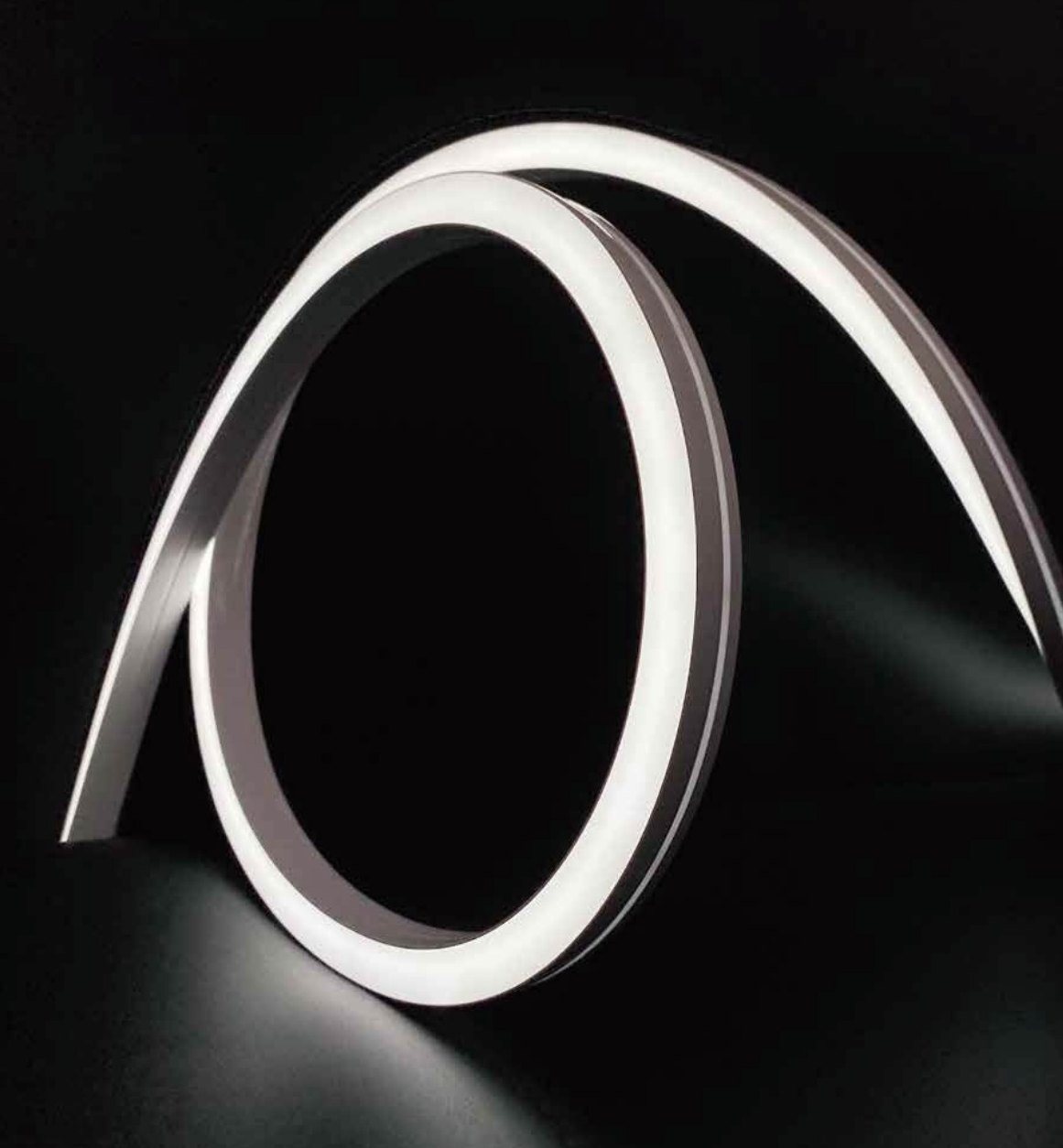

Flexible neon
Side-bend neon
It bends sideways: letters, logos and outlines.
IP67Outdoor
4–20 mmWidths
SideBend

IP67Outdoor
4–20 mmWidths
SideBend
Features
- Co-extruded eco silicone: even light with no dots.
- Takes single colour, CCT, RGB, RGBW, SPI or DMX strip.
- UV resistant, IP67 (IP68 in double layer).

Where it is used
SignageTrade fairs and standsNightlife
Versions
| Section | Light face | PCB width | Power | Beam angle |
|---|---|---|---|---|
| 4 × 10 mm | 4 mm | 6 mm | 10 W/m | 120° |
| 6 × 12 mm | 6 mm | 8 mm | 10 W/m | 120° |
| 9.5 × 15 mm | 9.5 mm, curved | 8 mm | 10 W/m | 180° |
| 10 × 10 mm | 10 mm | 5 / 6 mm | 10 W/m | 120° |
| 12 × 18 mm | 12 mm | 10 mm | 14 W/m | 180° |
| 16 × 16 mm | 16 mm | 10 / 12 mm | 15 W/m | 120° |
| 20 × 20 mm | 20 mm | 12 mm | 15 W/m | 120° |
Data
- Bend
- Side
- Material
- Eco-friendly co-extruded silicone
- Protection
- IP67; IP68 in double layer
- Strip
- Single colour, CCT, RGB, RGBW, SPI or DMX
- Operating temperature
- −30 to 50 °C
- Accessories
- End caps, straight and side exit connectors, clips, aluminium profiles and bendable track
- Tube version
- IP65 silicone tube
Bright Ideas technical data.
