Bright IdeasAluminium profiles
Corner profiles
At 45° or V-shaped, for inside corners and outside edges.
17Profiles
45°Angle
Corner or edgeInside and outside
17Profiles
45°Angle
Corner or edgeInside and outside
Features
- Anodised 6063 aluminium: does not discolour and dissipates heat well.
- Opal, frosted or clear diffuser.
- End caps and mounting clips.
- 1 m and 2 m bars; other lengths made to order.
On standsOn column edges, showcases and wall corners, with no routing needed.
Where it is used
Trade fairs and standsFurnitureShowcases

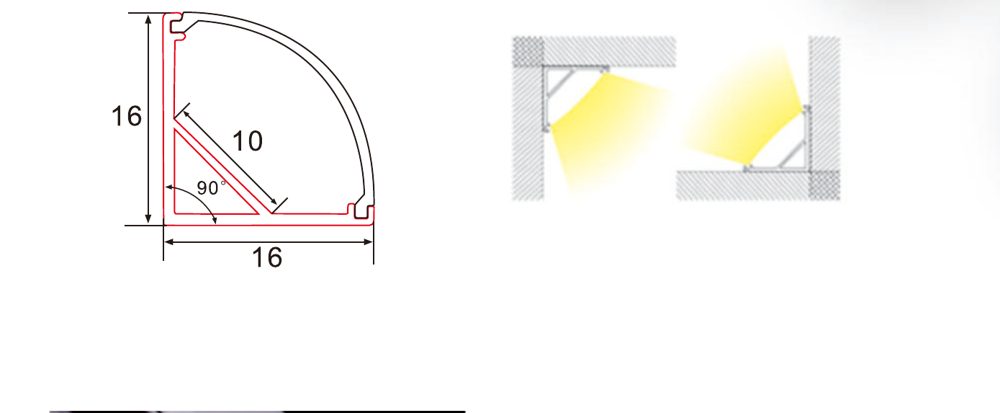

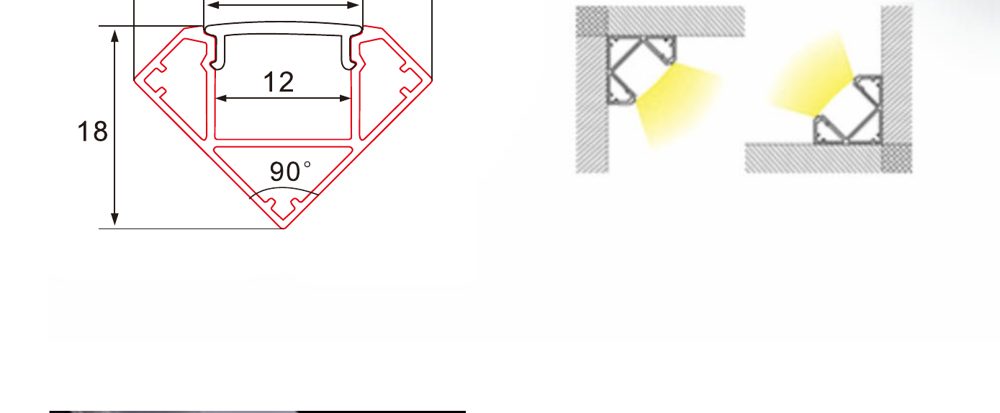

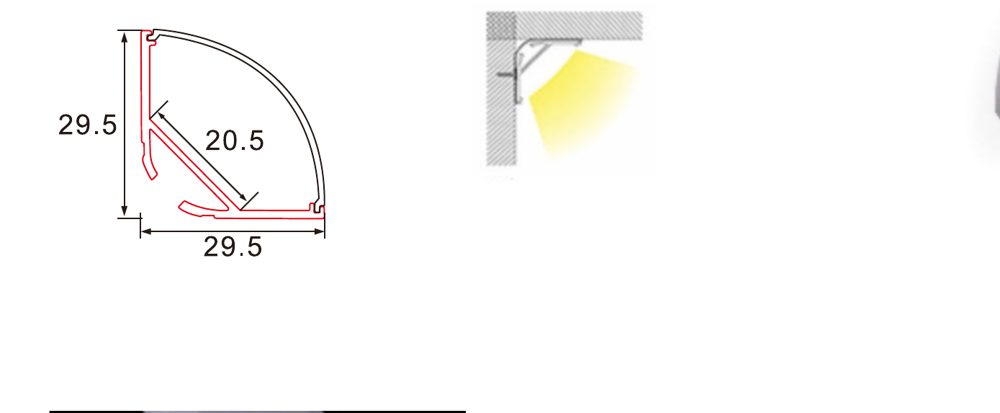

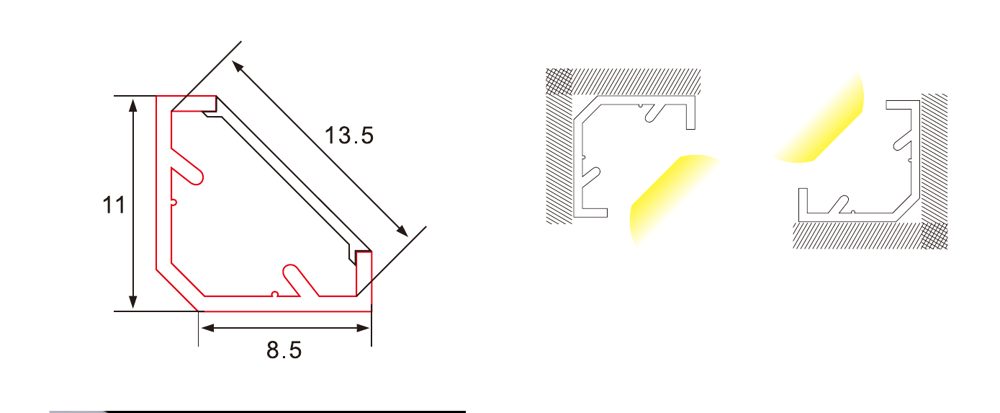

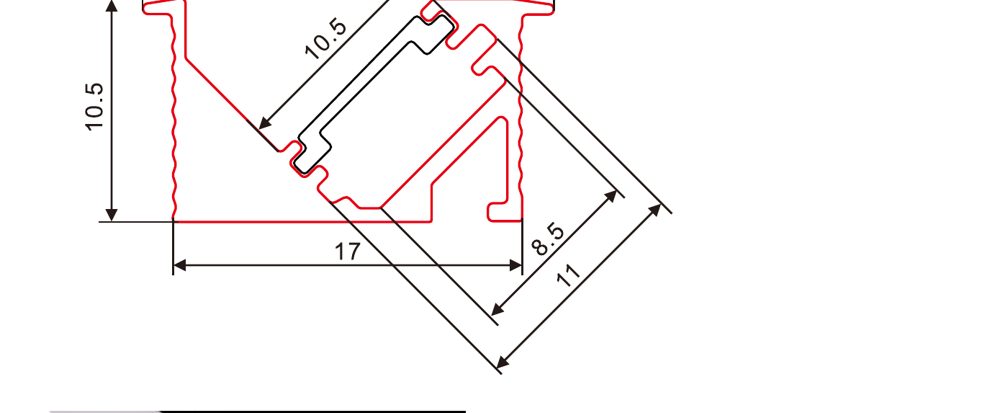

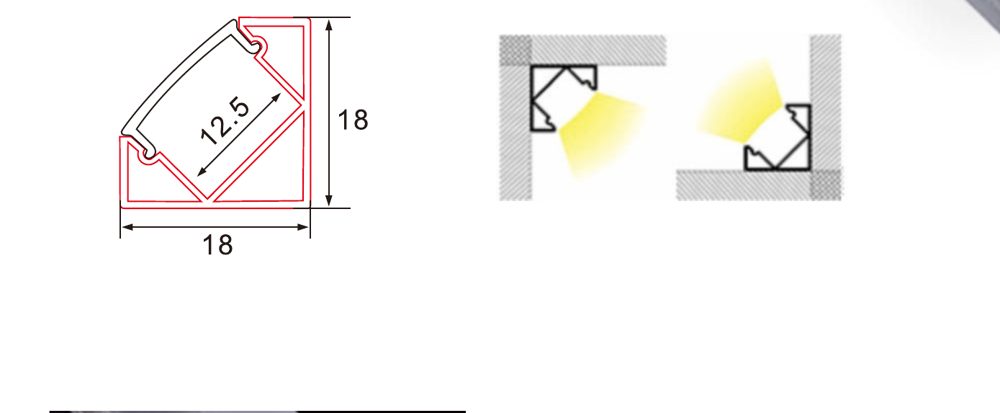

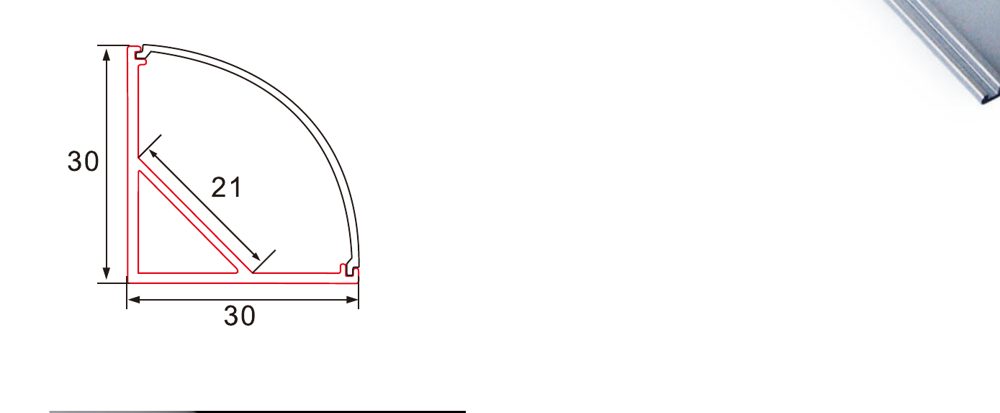

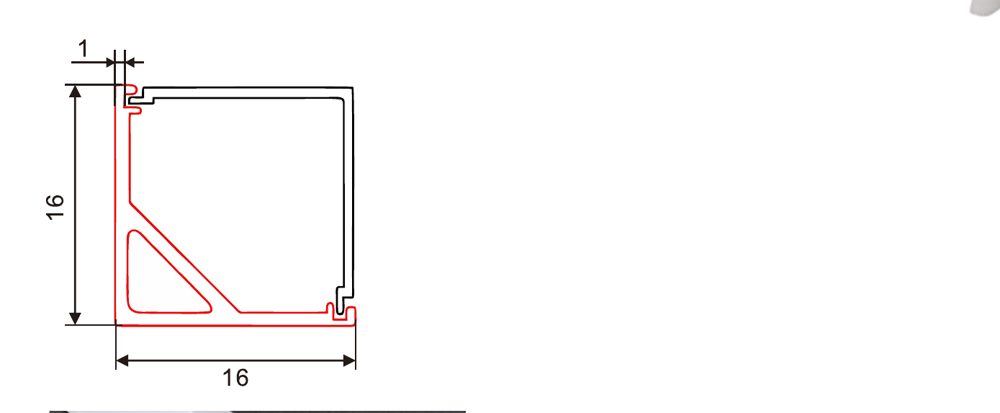

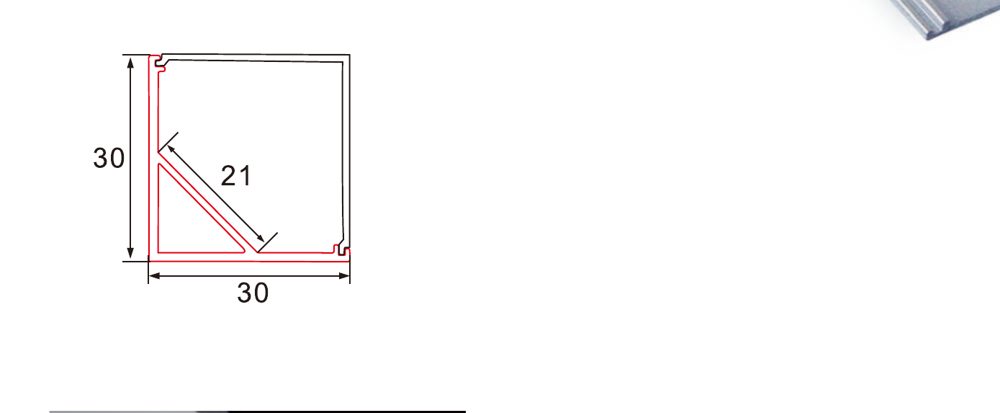

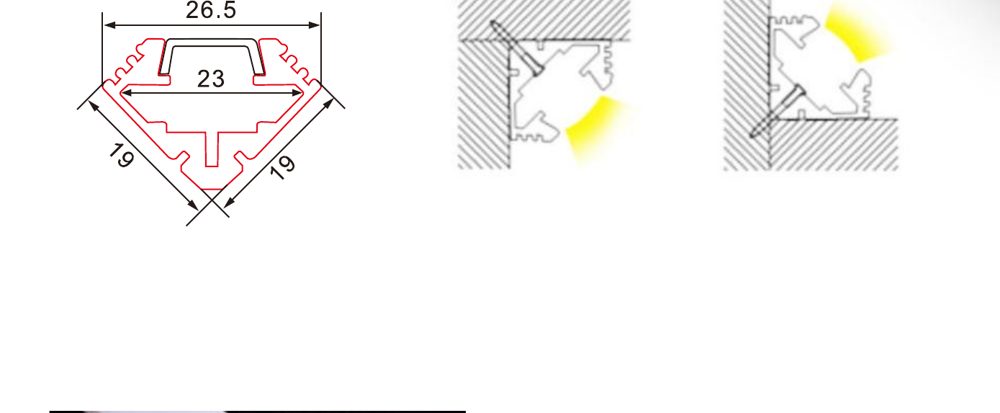

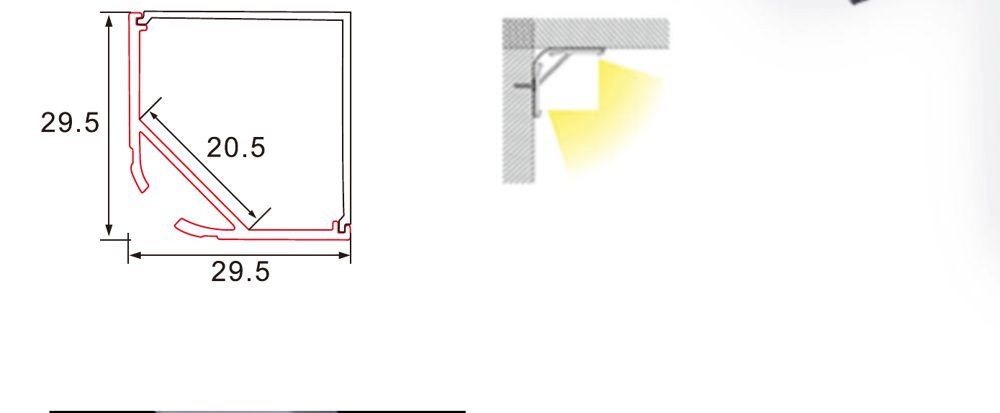

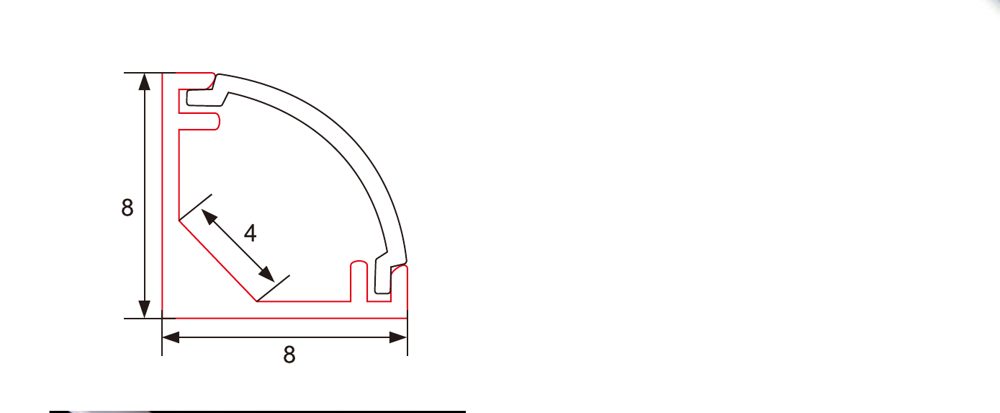

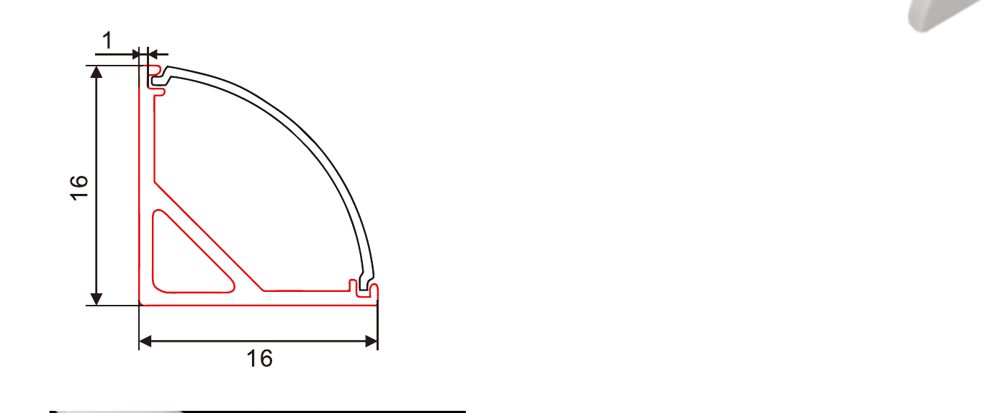

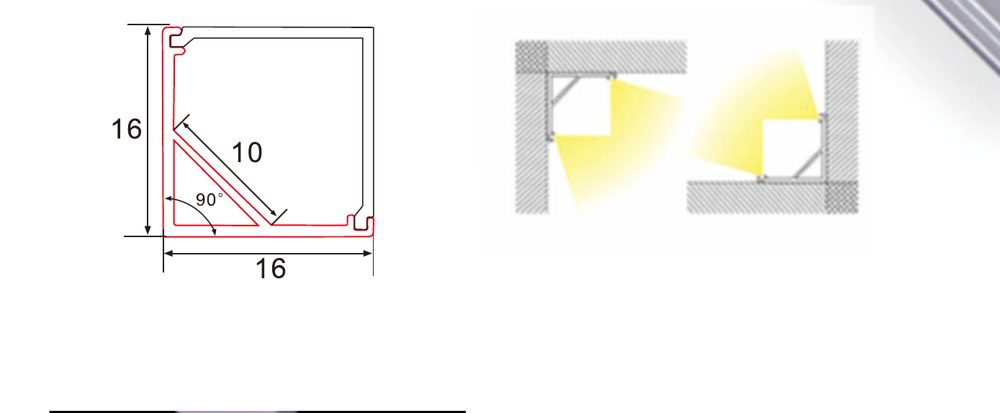

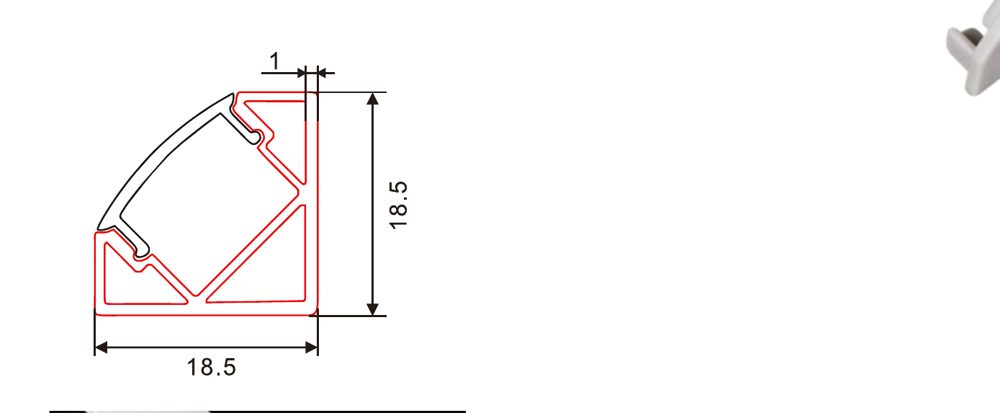

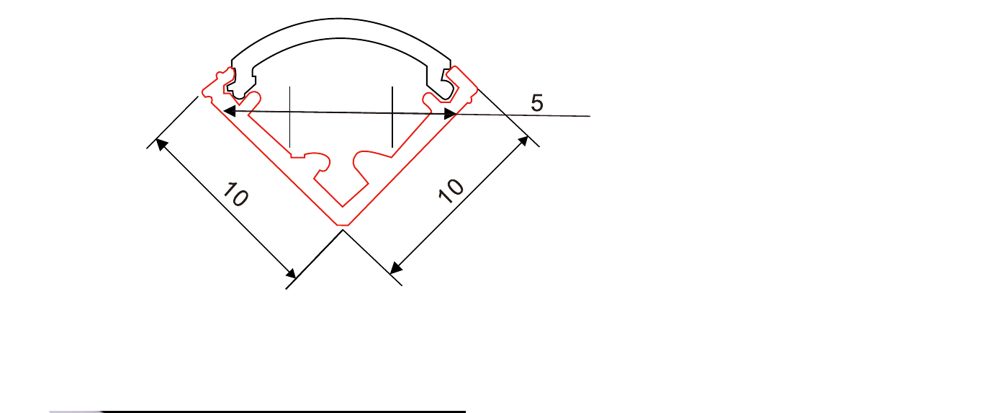

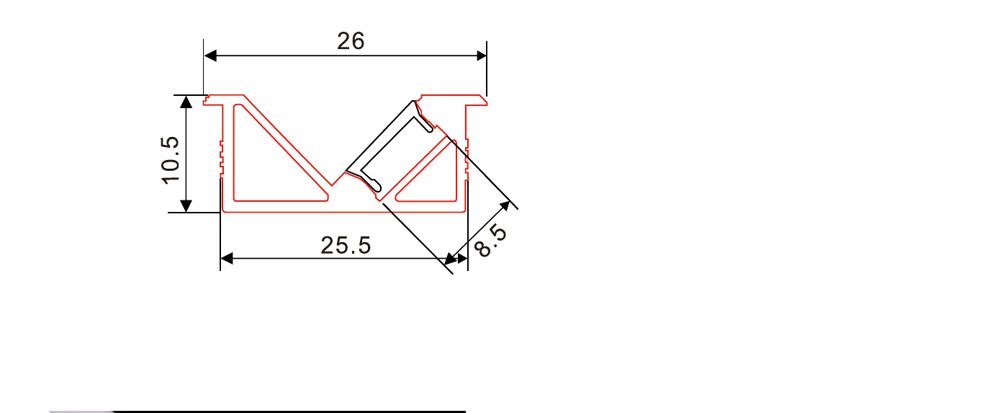

Sections and dimensions (mm)
Data
- Material
- Anodised 6063 aluminium
- Diffuser
- Opal, frosted or clear
- Accessories
- End caps with and without hole, mounting clips
- Length
- 1 m and 2 m bars. Other lengths made to order and quoted separately
- Dimensions
- On each profile drawing, in mm
Dimensions from the Bright Ideas catalogue.
